In UI design tools like figma, a grid system is almost always required to create a consistent layout. The CSS grid allows UI devs to be able to easily replicate this grid layout into a webpage.

The Subgrid feature essentially allows the elements inside a grid's child element to use the grid tracks defined in the parent.

An obvious use case is vertical alignment of elements of different heights arranged in a row.

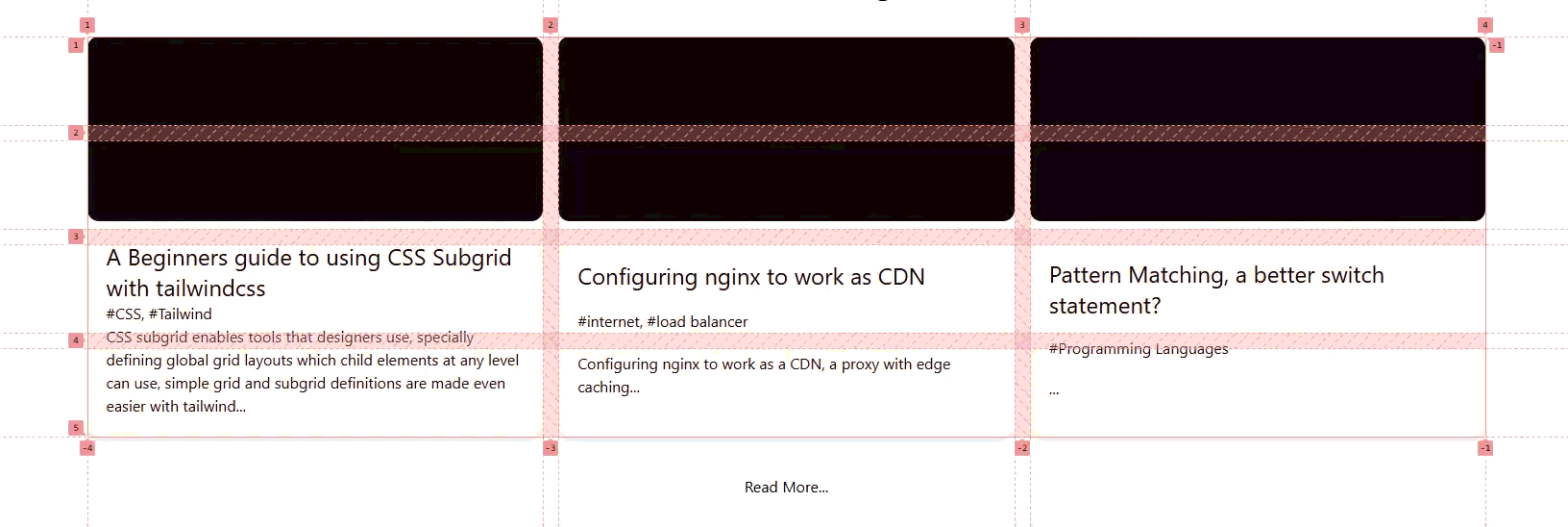

In the above image we can see the tracks defined in the grid container (parent) being used to align the banner, title tags and description elements of a row of cards

Subgrid in tailwind

The tailwind utility classes that define a basic grid include

CSS property	Tailwind class	Description
display:grid	grid	specifies element as the grid container
grid-template-rows: subgrid	grid-rows-subgrid	Allows nested child elements to use the grandparent' s grid lines
grid-template-rows: repeat(<number>, minmax(0, 1fr))	grid-rows-\<number>	defines the number of rows with each grid element of equal size *
grid-row: span <number> / span <number>	row-span-\<number>	The grid-row css property is a shorthand for grid-row-start & grid-row end span is a keyword that indicates given grid element will span for <number> no of rows

<!-- The parent grid -->
<div className="grid grid-cols-2 gap-2 w-full">
    <!-- The child which aligns its contents with the parent's grid of 4 rows -->
    <div className="grid grid-rows-subgrid row-span-4">
        <!-- specify how many rows a child's span and start-->
        <div className="grid grid-rows-subgrid row-start-1 bg-green-400">
            <div className='h-5'></div>
        </div>
        <!-- specify how many rows a child's span and start-->
        <div className="grid grid-rows-subgrid row-start-2 row-span-3 bg-red-400">
            <div className="h-5"></div>
        </div>
    </div>
    <!-- add other columns, you can experiment with the childs placement and spans -->
</div>

• After adding another column with different span/start values, it results in the following grid

*The properties defined in above table work in the same manner for columns (-cols-, col-span-, col-start-) etc.

*There are many css grid properties which aren't available through these simple tailwind classes but can be accessed by using tailwind's custom_value and --variable syntax.

*Some of those may include customizing the repeat and minmax functions in grid-template-*.
